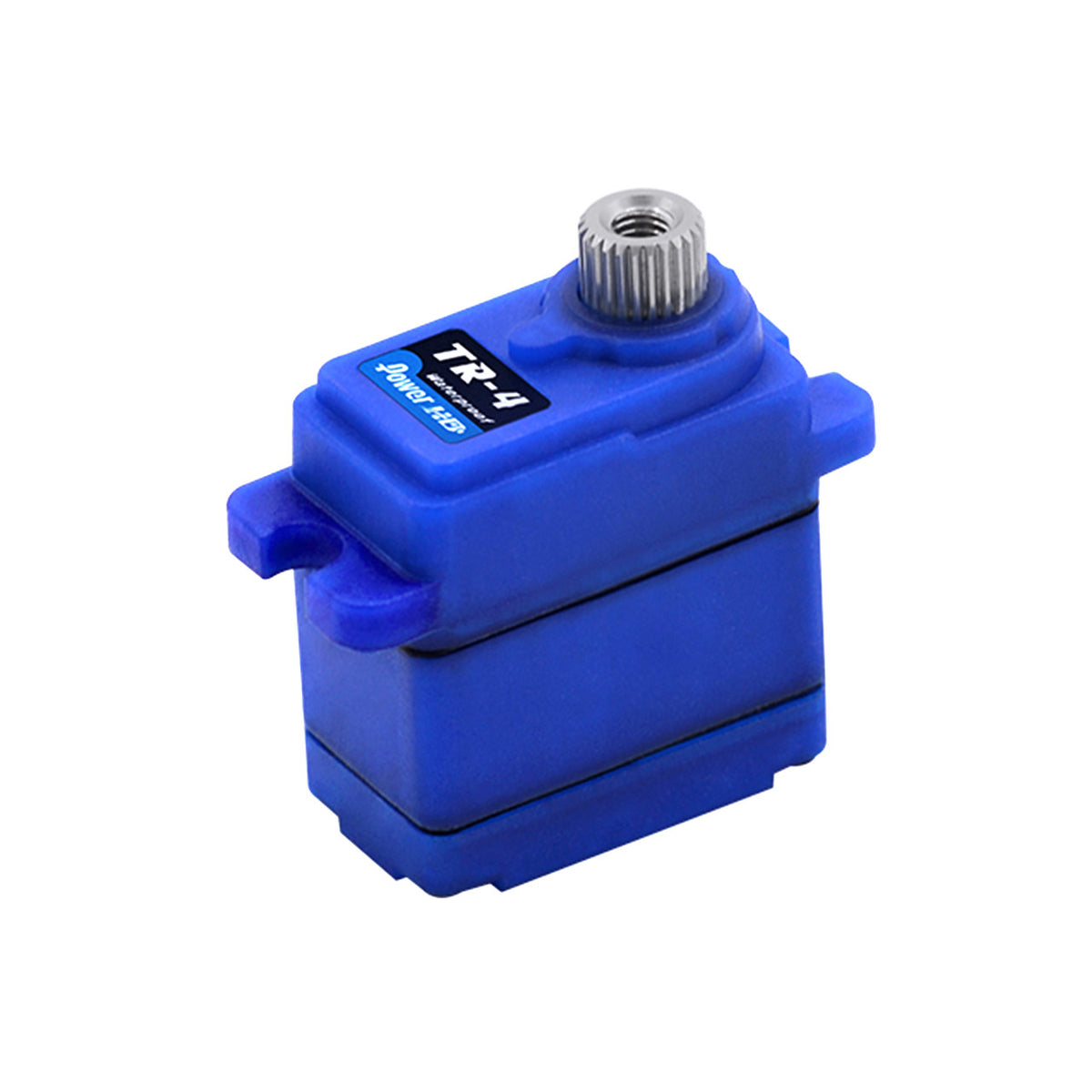

TR-4 WP HV Digital Servo 2.6KG /0.10sec@7.4V

Power HD TR-4 WP HV Digital Servo is a compact digital servo for RC models where fast response, precise control and high-voltage operation are required. With support for 4.8–7.4 V, it can be used in setups where both speed and torque need to match the vehicle’s electronics.

Servo performance increases with voltage, delivering up to 2.6 kg-cm at 7.4 V with a speed of 0.10 sec. This makes it suitable for smaller steering, shifting or function tasks where low weight and compact dimensions are important.

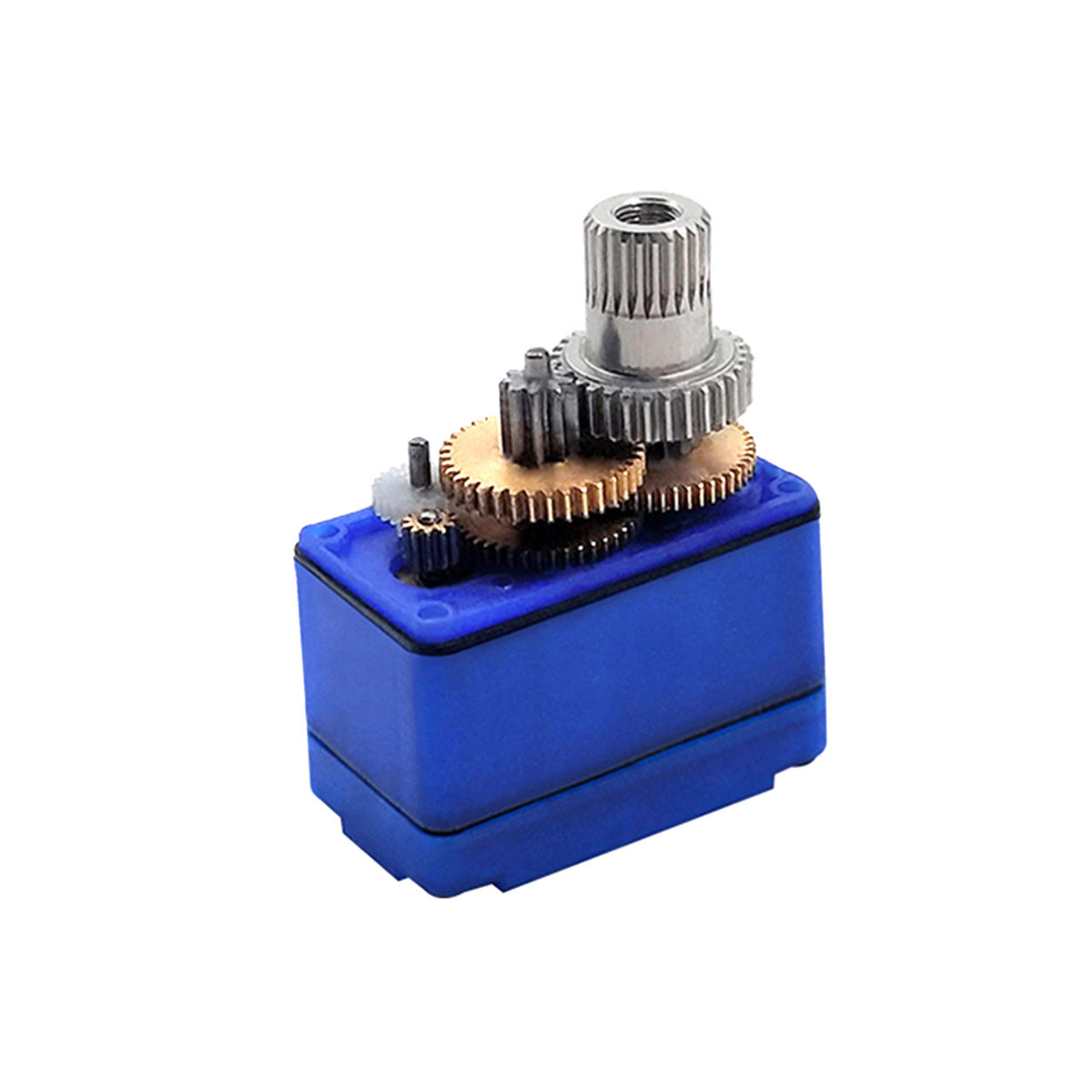

The copper and aluminium gear construction provides a strong and durable setup relative to the servo size. With a weight of only 16 g and dimensions of 22.5 x 12.5 x 24.0 mm, it is easy to integrate into compatible RC platforms.

Highlights

• Digital HV servo for 4.8–7.4 V
• Up to 2.6 kg-cm torque at 7.4 V
• Fast response down to 0.10 sec at 7.4 V
• Compact size of 22.5 x 12.5 x 24.0 mm
• Low weight of only 16 g
• Copper and aluminium gears
• Operating temperature from -20 to 60 °C
• 1520µs / 50 Hz working frequency

Compatible with

• TRX4
