Description
The Legend Returns

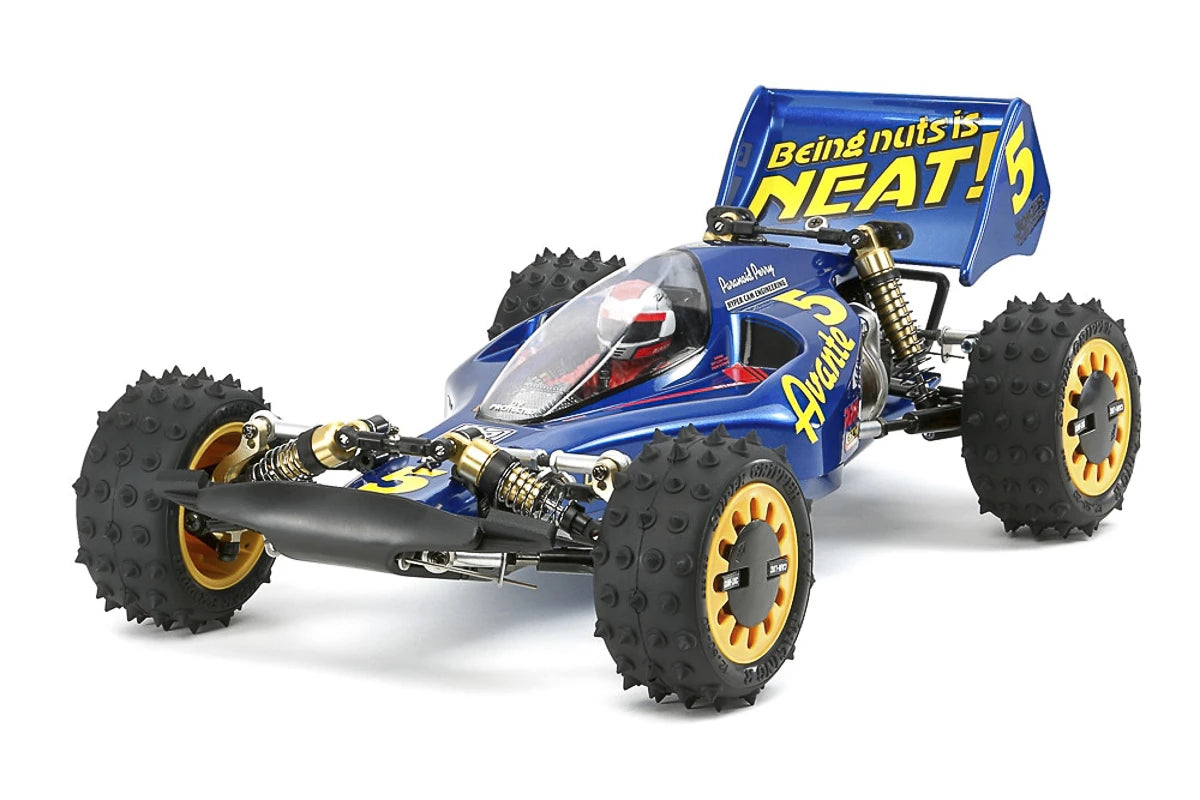

In 1988, Tamiya introduced the iconic 1/10 R/C 4WD racing buggy Avante, which featured an innovative and highly sophisticated design. This machine quickly became a monumental achievement in Tamiya's rich R/C history and captured the hearts of R/C enthusiasts worldwide. Now, the Avante (2011) returns with a modern makeover, incorporating improvements and refined parts to meet current R/C standards.
High-Performance Racing 4WD Chassis
The Avante (2011) chassis is a shaft-driven 4WD design that features a longitudinally-placed motor, with a 2mm carbon fiber double-deck chassis for increased strength and reduced weight. The rear FRP damper stay has been upgraded to a 3.5mm carbon fiber piece for added durability. The 4WD system includes planetary front and rear differentials and a center ball differential setup for optimal power distribution.
Additionally, 23 ball bearings minimize friction, enhancing performance and efficiency. The gearboxes have convenient hatches for easy maintenance and gear inspection.
Suspension & Handling
The 4-wheel double wishbone suspension is retained, with metal threaded shafts and ball ends for precision tuning. The front aluminum knuckles improve steering accuracy while keeping the original design intact. Other features include:
- Radius arm protectors to absorb shocks and protect the suspension
- Cam-loc wheel caps that ensure secure wheel mounting
- Die-cast front knuckles for enhanced stability and strength
User-Friendly Maintenance
One of the Avante's major advantages is the ease of maintenance. Both the front and rear gearboxes feature maintenance hatches, allowing quick and easy inspection of gears without needing to disassemble the entire chassis.
Customizing the Driver & Body
For painting the driver figure, you will need the following paints:
Driver Painting:
- TS-17 Gloss Aluminium Spray Paint: Tamiya TS-17
- X-18 Semi-Gloss Black: Tamiya X-18
- XF-7 Flat Red: Tamiya XF-7
- XF-66 Light Grey
- X-6 Orange Gloss: Tamiya X-6
Body Painting:
- PS-18 Metallic Purple: Tamiya PS-18
- TS-17 Gloss Aluminium: Tamiya TS-17
- X-6 Orange Gloss: Tamiya X-6
- X-18 Semi-Gloss Black: Tamiya X-18
- XF-7 Flat Red: Tamiya XF-7
- XF-66 Light Grey
Don't forget to use a body reamer for precise cuts: Absima Lexan Scissors
Additional Accessories You Need to Be Ready to Drive:
- Motor and ESC are included in the package, but to complete the build, you'll need the following:
- Remote Control & Receiver: Absima CR10P
- Servo: SRT DL5020 Digital Servo
- Battery: HPI 7.4V LiPo 5300mAh
- Charger: HPI Reactor 200W
Make sure you have the right tools too:
- Philips screwdriver: Absima Philips 5.0mm
Specifications:
- Chassis Type: Shaft-driven 4WD
- Body: Polycarbonate
- Suspension: 4-wheel double wishbone
- Differentials: Planetary front/rear, center ball differential
- Bearings: 23 ball bearings
- Aluminum Components: Front knuckles and center gear
- Scale: 1/10
- Motor: Longitudinally mounted
