Description

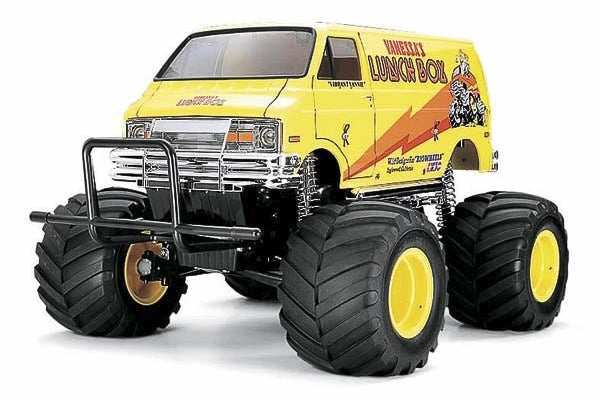

Tamiya's Lunch Box is a true classic in the R/C world, and this 2005 re-release brings back all the excitement of the original design. This 1/10 scale R/C assembly kit recreates a fun and boxy classic van mounted on oversized monster truck tires. The Lunch Box is one of Tamiya's iconic creations from the 1980s (first released in 1987), and it has been a fan favorite for its original appearance as much as for its R/C performance. The boxy minivan body is raised up over the monster truck wheels, ensuring that this R/C van will grab attention wherever you choose to drive it.
2WD Chassis Mounted on Big 115mm Tires The durable and easy-to-assemble 2WD chassis employs a box type frame and features front independent swingarms and a rear rolling rigid suspension. Big 115mm diameter tires offer dynamic running on even the toughest of surfaces. The sealed gearbox protects the diff gear from dirt and sand during off-road driving. The rear-mounted wheelie bar enables wild stunt driving.
Specifications:
- Length: 385 mm
- Width: 290 mm
- Height: 225 mm
- Weight: 1,560 g (without R/C equipment and battery)
- Wheelbase: 207 mm
- Tread: 212 mm (Front), 216 mm (Rear)
- Tire Width/Diameter: 71/115 mm
- Chassis: ABS Box Type Frame
- Drivetrain: Rear-Wheel Drive 2WD
- Suspension: Independent swingarms at the front, rolling rigid axle at the rear
- Dampers: Friction Dampers (Front & Rear)
- Differentials: 3-bevel gear
- Gear Ratio: 14.7:1
- Motor: Type 540 brushed motor
Body Paint: To give your Lunch Box an authentic look, you’ll need the following Tamiya colors:
- TS-16 Yellow (Gloss): Tamiya TS-16 Yellow Spray Paint 100 ml
- X-6 Orange (Gloss): Tamiya X-6 Acrylic Mini - Orange Gloss
- X-11 Chrome Silver (Gloss): Tamiya X-11 Acrylic Mini - Chrome Silver Gloss
- X-18 Black (Semi-Gloss): Tamiya X-18 Acrylic Mini - Semi-Gloss Black
Assembly Kit This is a full assembly kit where you’ll build the chassis and paint the body. The Tamiya TT-01 chassis is designed for easy assembly, similar to building LEGO, but with the added satisfaction of seeing your finished car drive.
Requires Electronics To make your car ready to run, you need to add a transmitter, receiver, servo, ESC, battery, and charger. These parts are not included in the kit.
Transmitter, receiver, servo, battery, and charger: MStyle M-001
ESC: MStyle E-60WP ESC 2-3S
Toolset for Assembly: Absima 3000057 Tool Set
