Description

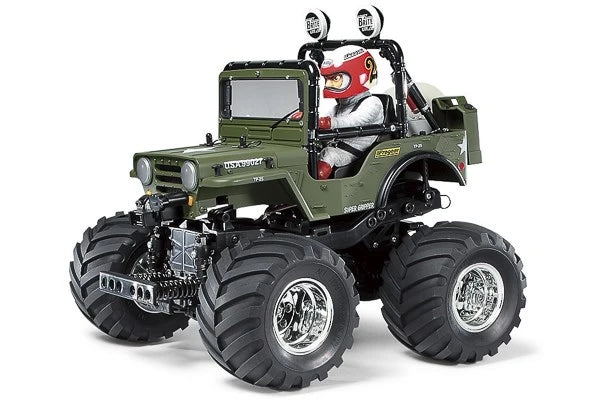

The Wild Willy 2 is a reproduction of the popular original Wild Willy from the mid-80s. This new version features an all-new chassis and larger tires, allowing it to tackle rough terrain with ease. Of course, the Wild Willy's trademark is its impressive wheelie capability, thanks to an all-new wheelie bar that allows for exciting wheelie driving.
WR-02 Chassis: The WR-02 chassis features a heavy-duty monocoque frame with side plates to increase rigidity. The R/C unit, motor, and battery pack are positioned along the centerline of the chassis, and the motor's power is delivered to the rear wheels via a fully enclosed gearbox equipped with a differential. A wheelie bar is fitted to enable exciting, wheels-in-the-air driving action. 4-wheel double wishbone suspension and a 2-piece steering tie-rod offer smooth steering response. Tires/wheels and the gearbox/motor come pre-assembled for ease of assembly.
Specifications:
- Scale: 1/10
- Length: 345 mm
- Width: 270 mm
- Height: 270 mm
- Wheelbase: 172 mm
- Weight: 1,360 g (without R/C units and battery pack)
- Motor: Type 540 Brushed Motor
- Drive Type: Rear-Wheel Drive
- Tire Width/Diameter: 113/70 mm (Front/Rear)
- Tread: 265 mm (Front), 270 mm (Rear)
- Chassis: Monocoque Frame
- Differential Type: 3-Bevel Gear
- Suspension: 4-Wheel Double Wishbone Suspension
- Gear Ratio: 18.3:1
Assembly Kit This is a full assembly kit where you’ll build the chassis and paint the body. The Tamiya WR-02 chassis is designed for easy assembly, similar to building LEGO, but with the added satisfaction of seeing your finished car drive.
Body Paint: To give your Wild Willy 2000 an authentic look, you’ll need the following Tamiya colors:
- TS-28 Olive Drab 2 (Flat): Tamiya TS-28 Olive Drab 2 Spray Paint 100 ml
- X-2 White (Gloss): Tamiya X-2 Acrylic Mini - White Gloss
- X-7 Red (Gloss): Tamiya X-7 Acrylic Mini - Red Gloss
- X-11 Chrome Silver (Gloss): Tamiya X-11 Acrylic Mini - Chrome Silver Gloss
- X-14 Sky Blue (Gloss): Tamiya X-14 Acrylic Mini - Sky Blue Gloss
- X-18 Black (Semi-Gloss): Tamiya X-18 Acrylic Mini - Semi-Gloss Black
- XF-2 White (Flat): Tamiya XF-2 Acrylic Mini - Flat White
- XF-7 Red (Flat): Tamiya XF-7 Acrylic Mini - Flat Red
- XF-15 Flesh (Flat): Tamiya XF-15 Acrylic Mini - Flat Flesh
- XF-16 Aluminum (Flat): Tamiya XF-16 Acrylic Mini - Flat Aluminum
- XF-56 Metallic Grey (Flat): Tamiya XF-56 Acrylic Mini - Metallic Grey
- XF-57 Buff (Flat): Tamiya XF-57 Acrylic Mini - Buff Flat
Requires Electronics To make your car ready to run, you need to add a transmitter, receiver, servo, ESC, battery, and charger. These parts are not included in the kit.
Transmitter, receiver, servo, battery, and charger: MStyle M-001
ESC: MStyle E-60WP ESC 2-3S
Toolset for Assembly: Absima 3000057 Tool Set
