Category: Mini Servo
Scale:
Length: 22
Width: 12
Height: 24
Weight: 16
Plug: JR stik
Volt: 6,0V - 7,4V
Surface:
Type: Kulmotor
Waterproof: Ja
Description

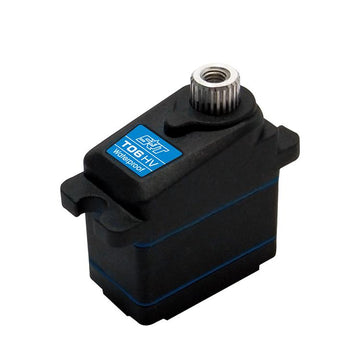

This micro digital servo from SRT is an excellent choice for a variety of RC vehicles, especially those requiring precision and durability in a compact size. With a waterproof construction and metal gears, this servo is designed to deliver reliable performance even under challenging conditions.
Product Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: DC
- Gear Type: Metal
- Gear Material: Copper & Aluminum
- Control System: Pulse Width Control
- Working Frequency: 1520μs / 330hz
- Operating Voltage: DC 4.8-7.4V
- Operating Temperature Range: -10 to +60 degrees Celsius
- Operating Speed (4.8V): 0.16 sec/60 degrees at no load
- Operating Speed (6.0V): 0.12 sec/60 degrees at no load
- Operating Speed (7.4V): 0.10 sec/60 degrees at no load
- Stall Torque (4.8V): 1.9 kg.cm (26.4 oz/in)
- Stall Torque (6.0V): 2.5 kg.cm (34.7 oz/in)
- Stall Torque (7.4V): 2.8 kg.cm (38.9 oz/in)
- Potentiometer Drive: Direct drive
- Dimensions: 22.5x12.5x24.0 mm
- Weight: 16.0g
- Connector Wire Length: JR 350 mm
Applications: This servo is ideal for use in Traxxas TRX4 remote-controlled crawlers, where it can be used to open/close differential locks and switch between high/low gears. The T06HV is an excellent alternative to the TRX2065 servo. It is also a perfect replacement for the SPMSSX108 servo in SCX24 crawlers, as well as a steering servo for all Traxxas TRX4m crawlers.
