Savöx - SC1252MG - Plus Servo 7Kg 0,07s Alu Coreless Metal Gear Low

Achieve lightning-fast and precise steering in your 1/10 on-road RC car with the SAVÖX SC-1252MG Plus V2 – a digital low profile servo that combines advanced technology with uncompromising durability. This servo is the obvious choice for enthusiasts seeking maximum performance where space is tight and response time must be top-notch.

—

Features:
- Metal gears ensure long life and resistance to heavy loads
- Low profile design – perfect for 1/10 on-road cars with limited space
- High speed: Up to 0.07 sec/60° at 6V for ultra-fast steering movements
- 12-bit (4096) resolution for extreme precision
- Aluminum housing for efficient cooling and increased durability
- SSR compatible (Super Speed Response) – ideal for modern transmitters
- Soft Start function for smooth and controlled startup

—

Specifications:
- Operating voltage: 4.8-6.6V
- Torque @ 4.8V: 4.5kg/cm (62.5 oz-in)
- Torque @ 6V: 7kg/cm (97.2 oz-in)
- Speed @ 4.8V: 0.08 sec/60°
- Speed @ 6V: 0.07 sec/60°

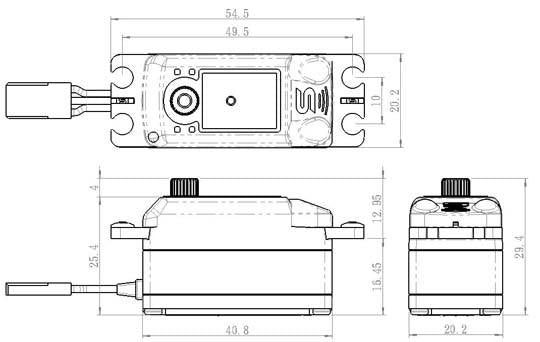

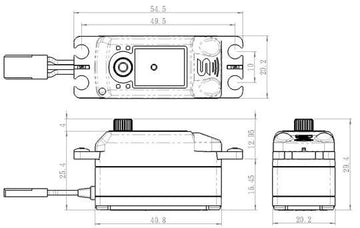

- Dimensions (LxWxH): 40.8 x 20.2 x 25.4 mm
- Weight: 44.5 g

—

Technical Details:
- Operating temperature: -10° to 50°C
- Current consumption (no load): 150mA @4.8V, 180mA @6.0V
- Stall current: 2000mA @4.8V, 3000mA @6.0V
- Idle current: 5mA @4.8V/6.0V
- Cable length: 300 ± 5 mm
- Output gear: 25T spline
- Bearings: 2 ball bearings
- Operating range: 90° (1000 → 2000 µs)
- Neutral: 1500 µs
- Pulse width: 950 → 2050 µs
- Max travel: approx. 160° (700 → 2300 µs)
- Update frequency: 240 Hz
- Motor type: Coreless

—

Perfect for those who demand the best
The SAVÖX SC-1252MG Plus V2 is developed for RC drivers who refuse to compromise on precision and durability. Whether you race competitively or for fun, you get a servo that delivers fast response and reliable operation – even under demanding conditions.

—
