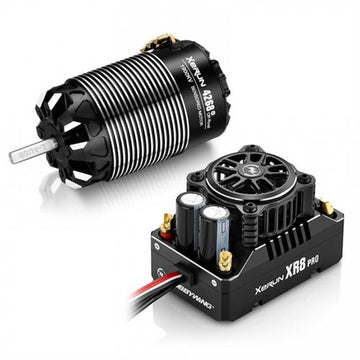

Xerun Combo XR8 Pro G3 4268SD G3 2200kV Off-Road

Xerun XR8 PRO G3 2–4S ESC + 4268SD 2200KV G3 Motor Combo – compact, cool and uncompromising race performance for 1/8

—

This Hobbywing Xerun XR8 PRO G3 + 4268SD 2200KV G3 combo is made for serious 1/8 offroad and onroad racing where you want maximum power, precise control and lower temperatures – without carrying unnecessary weight.

The ESC has become both shorter and narrower than the previous XR8 Pro G2, and the motor is optimized in both efficiency and weight. Together they provide an extremely powerful, fully sensored power solution with advanced timing functions, improved brake control and high reliability – perfect for competitive racing and demanding bashers who want race-grade equipment.

—

Compact XR8 PRO G3 ESC – smaller size, greater capacity

The XR8 PRO G3 is approx. 15% smaller in footprint than its predecessor (1.3 mm shorter and 5.3 mm narrower), yet still delivers:

• Continuous current of 200A and peak up to 1080A
• Fully sensored operation for maximum response and control
• Support for 2–4S LiPo in this combo

The smaller size makes it easier to fit into tight 1/8 chassis, improves airflow and helps with weight distribution in the car.

—

Dual Brake Modes – traditional brake or “disc brake” feel

The XR8 PRO G3 has two different brake modes:

1. Closed-loop torque brake (disc brake mode)

• Provides linear and predictable braking force, independent of vehicle speed
• Mimics the feel of real disc brakes
• Option to adjust the brake force curve and distribution between front and rear

1. Traditional brake mode

• Retains the classic ESC brake feel
• Perfect if you are used to “old-school” brake characteristics and want to keep them

This lets you tailor the brakes precisely to your driving style and track surface.

—

Higher efficiency – up to 15 °C lower ESC temperature

The combination of improved hardware design and Hobbywing’s smart freewheeling technology provides:

• Higher efficiency
• Lower heat generation
• More stable performance over an entire heat

Compared to the XR8 Pro G2, ESC temperature can be reduced by approx. 15 °C under heavy load, which increases reliability and service life.

(Note: Under heavy load, the XR8 Pro G3 will typically run cooler than the XR8 Pro G2.)

—

Efficient and robust cooling – frameless fan + intelligent control

The ESC uses a frameless fan with special material in the fan blades:

• Less sensitive to small stones, sand and debris
• Longer lifespan and fewer failures

At the same time, it features intelligent fan start/stop:

• The fan does not run at low temperature
• Starts automatically when the ESC reaches a preset temperature
• Less noise, lower power consumption and better temperature control

—

Advanced Boost & Turbo Timing – up to 50% more top speed

The XR8 PRO G3 inherits Turbo Timing technology from the well-known XR10 Pro 1/10 ESCs:

• Supports up to 48° Boost and Turbo Timing
• Designed to deliver significantly more top speed and punch
• Provides up to approx. 50% higher top speed compared to previous G2 motors when everything is set up correctly

For maximum performance, it is recommended to use the ESC together with Hobbywing 4268/4274 G3 motors – which this combo does.

(Note: When G3 motors are paired with the XR8 Pro G2 ESC, turbo can be set up to a maximum of 48°.)

—

Built-in reverse polarity protection

The ESC has built-in reverse polarity protection:

• If you accidentally connect the battery plug the wrong way, the ESC will not be destroyed
• Provides extra safety in the pits and during quick battery changes

—

Real-time data logging via OTA (optional)

Connect a separate OTA module box to enable real-time data recording:

• View the ESC’s operating data live via Bluetooth
• Get an overview of temperatures, load and performance
• Effective range approx. 5 meters due to Bluetooth limitations

Perfect for serious racers who want to fine-tune gearing, timing and setup based on actual data.

—

Capacitor protection and IP5X dustproof rating

To increase durability, the following are built in:

• Capacitor Thermal Protection
• Protects the capacitors from overheating and explosion damage
• Prevents irreversible damage to the ESC under overload

• IP5X dustproof rating

• Effectively protects the ESC against dust and debris in offroad environments
• Supplied with a small protective cap for extra fan protection

Note: If the ESC’s overheat protection is disabled and it is used in an onroad/flat-road setup, it is recommended to add an extra capacitor pack to avoid capacitor overheating.

—

Ultra-soft 11AWG silicone wires

The ESC comes with 11AWG ultra-soft silicone wires:

• Very flexible and easy to route in the chassis
• Low internal resistance for maximum efficiency
• Ideal for both racing and high-power bashing

—

4268SD 2200KV G3 Motor – light, efficient and extremely smooth

This 1/8 sensored brushless motor is developed for offroad racing where both raw power and control are crucial.

Key points:

• Fully sensored 4-pole motor for maximum response
• Optimized structure provides min. 6% higher efficiency than 4268/4274 G2
• Reduced temperature rise and lower risk of thermal runaway
• Very low cogging and small torque pulsations at low RPM – super smooth at low speed

—

Adjustable mechanical turbo timing (20–40°)

The motor’s mechanical turbo timing can be precisely adjusted in both directions (CW/CCW):

• Adjustable between 20–40°
• Makes it possible to match the motor’s characteristics to track, grip and ESC setup
• Perfect for fine-tuning acceleration vs. top speed

—

New Hall sensor technology – stable and fail-safe sensored operation

The G3 series uses Hobbywing’s patented “error-free” Hall sensor technology:

• Independent, high-speed and high-precision encoder
• Delivers a clean and accurate rotor position signal
• Effectively isolates against external interference that can normally cause sensor drop or errors
• Provides extremely stable sensored operation even under harsh conditions

—

IP5X dustproof motor – built for offroad

This 4268SD 2200KV G3 motor is IP5X rated:

• Designed to minimize ingress of dust and small particles
• Ideal for offroad where dirt normally wears motors heavily

(Note: Only the 4268-1900KV/2200KV and 4274-2250KV models are IP5X.)

—

Lightweight design – better weight distribution in the car

The 4268SD G3 motor is optimized for low weight:

• The 2200KV version weighs only 285 g
• Approx. 45 g lighter than equivalent motors in the same class
• Makes it easier to balance the car and improve handling

—

Top-class materials and construction

The motor is built for hard competitive use:

• Machined from a single piece of 7075 aluminum with precision CNC
• Smooth stator housing without screws or gaps on the outside
• Silicone dust ring around the sensor base for extra sealing
• Front end bell with:
• Two pairs of M3 threads
• Two pairs of M4 threads
• Fits many different motor mounts
• U-shaped/90° gold-plated copper terminals:

• Very low internal resistance
• Makes soldering wires easier
• R-class insulation material (240 °C rating)
• Special high-strength adhesive (up to 340 °C)
• High-quality, low-friction bearings from well-known international manufacturers, designed for extreme loads

—

Technical specifications – Motor (4268SD 2200KV G3)

• Application: 1/8 Off-Road
• Type: Sensored Brushless
• Poles: 4
• KV Rating: 2200
• LiPo Cells: 2–6S (2–4S in this combo)
• No Load: 4.1A
• Case Diameter: 42mm
• Case Length: 67.8mm
• Shaft Diameter: 5mm
• Shaft Length: 18.5mm
• Weight: 285g
• Front Bearing: 5x5x16mm
• Rear Bearing: 5x5x11mm
• Timing: 20–40° (adjustable)

—

Technical specifications – ESC (Xerun XR8 PRO G3)

• Type: 1/8, Brushless, Sensored ESC
• Cont./Peak Current: 200A / 1080A
• Input Voltage: 2–4S LiPo
• BEC Output: 6V / 7.4V adjustable, continuous 6A (switch-mode)
• Input Wires: 11AWG – 200mm
• Output Wires: 11AWG – 200mm
• Input Connectors: None (bare wires)
• Output Connectors: None (bare wires)
• Firmware Upgrade: Supported
• Size: 54.8 x 36.8 x 38.8mm
• Weight: 102.8g
• Motors: 3660–4268 size motors
• Vehicles:
• 1/8 Off-road
• 1/8 On-road Racing
• 1/10 Short Course Trucks
• 1/10 Monster Trucks

ESC programming:- SET Button on ESC: Not Supported

• LED Program Box: Not Supported
• LCD G2 Program Box: Supported
• OTA Programmer: Supported
• Programming Port: Independent programming port

—

Suitable for

This combo is ideal for 1/8 offroad buggy, truggy, GT and powerful 1/10 short course/monster trucks where you want:

• 2–4S setup with high efficiency
• Competitive performance with advanced timing
• Robust, dustproof and cool operation in tough conditions

Perfect if you want to upgrade from standard 1/8 systems to a serious race setup with fully sensored control, a powerful 200A ESC and a light, efficient 2200KV motor.
