Category: Combo
Scale: 1/8
Plug: XT-90
Volt: 11,1V - 14,8V - 22,2V
Surface:
Type: Brushless Fartregulator
Motorshaft: 5
Waterproof: Ja
Description
The Hobbywing Max8 G2 ESC is the most sought-after ESC on the market. Its dynamic and dominant specifications meet the needs of power-hungry users. It delivers strong output power with excellent linearity at low speeds and operates in full-sensored mode.

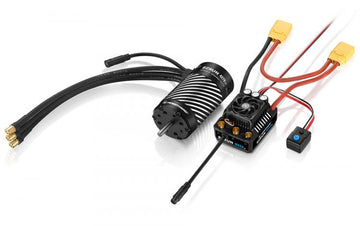

This combo also includes the EzRun 4268/4278 G2 Motor, ensuring perfect compatibility and protection against overheating.
Suitable for All Weather Conditions
The IP-67-rated system guarantees excellent waterproofing and dustproof protection. This means the entire power system can run on various surfaces, including mud, sand, ice, snow, and water, without damaging the unit.
Built-in BEC and Large Capacitors
The ESC has a built-in BEC capable of supporting a maximum output current of up to 15A, and the output voltages can be switched between 6V, 7.4V, and 8.4V. This ensures the ESC can handle demanding high-torque servos on the market. Furthermore, the ESC features three built-in 680uF capacitors, increasing performance by 74% compared to the MAX8 ESC. This results in improved operation and temperature control.
New Sensored Cable Interface
The Max8 G2 ESC is equipped with a new type of sensored cable interface designed to match Hobbywing motors and ensure high water resistance (IP67). Note: This ESC also supports standard cables on the market.
Specifications
- Type: Scale - 1/8
- Brushed/Brushless - Brushless
- Sensored/Sensorless - Sensored
- Waterproof - Yes
- Cont./Peak Current - 160A/1050A
- Input Voltage - 3-6S LiPo
- BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
- Weight - 192g
- Applications: 1/8 Truck, Monster Truck
4278 Motor
The Hobbywing EZRUN 4278 motor is a powerful and precise motor that delivers excellent performance. It's ideal for 1/8-scale vehicles and operates in full-sensored mode.
Specifications
- Type: Scale - 1/8
- Brushed/Brushless - Brushless
- Sensored/Sensorless - Sensored
- Pole Count - 4
- KV Rating - 2250KV
- LiPo - 3-6s
- No-load Current (A) - 5.0A
- Diameter (mm) - 42
- Length (mm) - 78
- Shaft Diameter (mm) - 5.0
- Weight (g) - 455g
- Front Bearing - D16D5T5
- Rear Bearing - D11D5T5
This combo is the ultimate solution to upgrade your RC experience. With outstanding performance and protection, you're ready to tackle any challenge.
