HobbyWing - HW30850500 - S.BUS2 Telemetry Adapter for Futaba

Hobbywing S.BUS2 Telemetry Adapter for Futaba – HW30850500

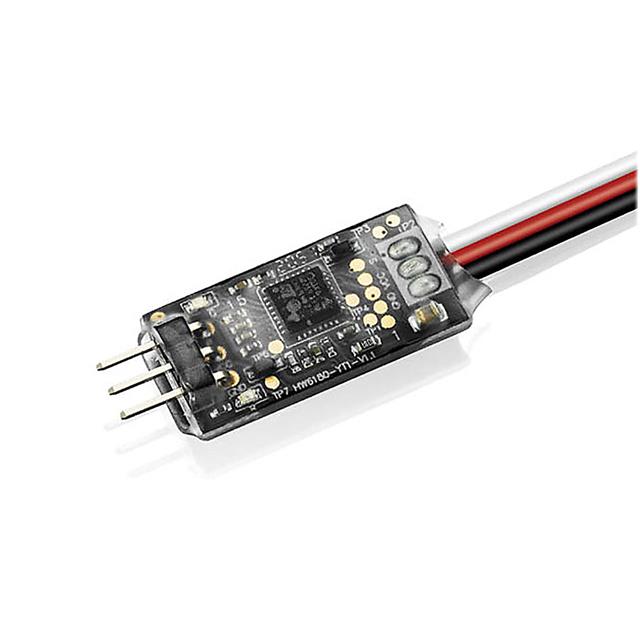

Unlock real-time telemetry from your Hobbywing ESC directly on your Futaba transmitter with the Hobbywing HW30850500 S.BUS2 Telemetry Adapter. This compact, lightweight module allows you to monitor critical ESC data such as voltage, RPM, temperature, and current (if supported) – ideal for both competitive use and fine-tuning your setup.

Compatible with a wide range of Hobbywing Platinum (air) and XeRun/EZRun/MAX (car) ESCs, as well as Futaba radios with S.BUS2 support, this adapter is a must-have for serious RC pilots and drivers looking for complete control and data insight.

⚙️ Features & Benefits:

• Real-time telemetry for Futaba radios via S.BUS2

• Supports both aircraft ESCs (Platinum Series) and car ESCs (XeRun / EZRun / MAX Series)

• Displays key ESC data:

  • Voltage

  • RPM

  • Temperature

  • Current (if supported by ESC)

• LED indicator for status monitoring

• Ultra-compact and lightweight – only 3.5g

✅ Compatible Hobbywing ESCs

Air – Platinum Series:

• Platinum 25A / 60A / 80A / 120A V4

• Platinum HV 130A V4 / OPTO

• Platinum HV 200A V4.1 SBEC / OPTO

• Platinum 150A V5

• Platinum HV 260A V5

Car – XeRun / EZRun / MAX Series:

• XR10 PRO G2S (no current data)

• XR8 PULS G2S

• XR8 PRO G2 / G3

• XD10 PRO (no current data)

• EZRUN MAX10 G2

• EZRUN MAX8 G2

• EZRUN MAX4 HV

• EZRUN MAX5 HV G2

📡 Compatible Futaba Transmitters

Note: Transmitter must support S.BUS2 telemetry.
Compatible models include:

• T32MZ

• T16IZ

• T18SZ

• T10PX

Ensure both transmitter and receiver firmware are up to date, and always verify compatibility with Futaba before use.

📐 Specifications:

• Product Name: S.BUS2 Telemetry Adapter for Futaba

• Item Number: HW30850500

• Operating Voltage: 5–9V

• Dimensions: 25 x 13 x 6 mm

• Weight: 3.5 g

Connect. Monitor. Optimize.

With the Hobbywing S.BUS2 Telemetry Adapter, you gain critical insight into your ESC’s performance – all from your Futaba radio. Fine-tune your setup with confidence and precision.
