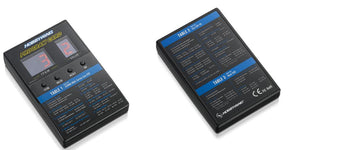

Hobbywing LED Programing Box - General

LED Program Box for Hobbywing – easy and precise programming of your ESC

—

This LED program box makes it super easy and fast to program your Hobbywing brushless speed controller (ESC). With a simple and clear LED display, you can adjust all important settings directly in the field – without a computer and without hassle.
It is compact, lightweight, and perfect to keep in your RC bag, whether you drive car, boat, or fly plane/heli.

—

Features and benefits

• User-friendly LED display with clear menu
• Quick access to all key ESC settings
• Compact and lightweight – ideal for field use
• Supports both car, boat, and aircraft ESCs from Hobbywing
• Can be powered via the ESC’s BEC or a separate battery (if the ESC has no BEC)

—

Compatibility – which Hobbywing ESCs does it work with?

This LED program box works with the following Hobbywing series:

• Aircraft/heli ESCs:

• Platinum V1 / V2 series
• FlyFun V5 series

• Car ESCs:

• XeRun series (not all models – for some, the LCD Program Box is recommended)
• EzRun series
• QuicRun series

• Boat ESCs:

• SeaKing series

If you are unsure whether your specific model is supported, you can check the manual for your ESC or contact us at RC Kongen.

—

Specifications

• Size: 88 x 58 x 14 mm (L x W x H)
• Weight: 40 g
• Input voltage: 4.8V – 8.4V

• Note: If your ESC has no built-in/external BEC, you must use a separate battery to power the program box.

—

How to connect the program box

• Connect the receiver plug from your Hobbywing ESC to the program box
• On some ESCs you can also use the fan port – depends on the model
• Alternatively, you can connect a separate battery (4.8–8.4V) if the ESC does not supply BEC voltage

A connector is also included for you to use for connection.

—

These settings you can adjust

With this LED program box you get access to all the important driving and safety settings on your Hobbywing ESC. Among other things, you can set:

• Running mode:

• Forward, forward/brake, forward/brake/reverse (depending on ESC model)

• Drag brake force:

• How much the motor “brakes” automatically when you release the throttle

• LiPo cut-off:

• Voltage protection for LiPo batteries so they are not discharged too deeply

• Start mode (Punch):

• How aggressive the acceleration should be from standstill

• Brake force:

• 25%, 50%, 75%, 100% or no brake

• Reverse force:

• How strong the reverse function should be

• Initial brake force:

• Initial braking force when you first start to apply the brake

• Neutral force:

• Adjustment of the neutral range on the throttle

• Timing:

• Motor timing for fine-tuning performance and efficiency

• Overheat protection:

• Overheating protection to safeguard the ESC from damage

—

In short: This Hobbywing LED Program Box is an indispensable tool if you want full control over your ESC settings – whether you drive cars, sail boats, or fly.
