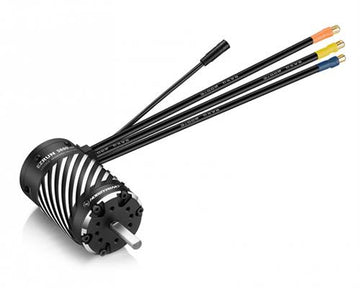

EZRUN 5690SD Sensor Brushless Motor - 1250KV - 3-8S

Experience uncompromising power, efficiency, and durability with the Hobbywing EZRUN 5690SD Sensor Brushless Motor – 1250KV. This sensorless brushless motor is developed for those who want the very best for their RC car, boat, or drone. With advanced technology, thoughtful design, and top-quality materials, this motor is the obvious choice for both ambitious hobbyists and competitive racers.

—

Features and Benefits:
- Perfectly compatible with QuicRun WP 8BL150 G2 ESC – plug & play with standard 6.5mm low IR connectors
- Ultra-high efficiency and low temperature rise – more runtime, less heat buildup
- Asymmetric bearing design: large precision bearing at the front for high load, small bearing at the rear for low resistance
- 10AWG silicone output – easy, flexible, and aesthetic wiring
- Modular design for easy cleaning and maintenance
- Blind hole threads prevent damage from overly long screws and support both M3 and M4 mounting
- Precisely balanced rotor – low vibration, good linearity, and minimal energy loss
- Solid aluminum motor housing with cooling fins for optimal heat dissipation
- Color-coded wires for simple and safe installation
- High quality and durability – built to last, even under extreme conditions

—

The Hobbywing EZRUN 5690SD is not just a brushless motor for RC cars – it’s an investment in performance and reliability. The sensorless brushless motor structure means fewer moving parts, reducing wear and extending lifespan. With an impressive 1250KV rating, you get explosive acceleration and smooth power delivery, whether you’re driving off-road, on-road, sailing a boat, or flying a drone. The robust aluminum motor housing with integrated cooling fins ensures the motor stays cool, even under the most demanding conditions.

The asymmetric bearing construction is a unique detail that increases both efficiency and operational reliability. The large precision bearing at the front improves the motor’s ability to handle heavy loads, while the smaller rear bearing reduces resistance and increases efficiency. At the same time, the modular design makes it easy to disassemble and maintain the motor, so you can always keep it in top shape.

Installation is made extra easy with 10AWG silicone wires that are both flexible and neat, as well as color-coded wires that ensure correct connection. The blind hole threading protects the motor from damage caused by overly long screws and provides flexibility for various mounting solutions. And with a maximum RPM of 55,000, you’re guaranteed a motor that can keep up – no matter how demanding your project is.

At Hobbywing, quality and material selection are paramount. Every motor undergoes strict quality control, so you get a brushless motor for hobby use that delivers maximum performance and consistent results – every time. The precisely balanced rotor minimizes vibrations and energy loss, giving you a more stable and efficient driving experience.

—

Specifications:
- Type: 1/5 & 1/6, brushless, sensored ESC
- Pole Count: 4
- KV Rating: 1250
- LiPo Cells: 3-8S
- No-load Current (A): 6.6A
- Outer Diameter: 56mm
- Length: 90.2mm
- Shaft Diameter: 6.5mm
- Connector: 8mm male (standard 6.5mm for WP 8BL150 G2)
- Wire: 10AWG silicone, 200mm
- Weight: 867g
- Front Bearing: D22xD8xT7mm
- Rear Bearing: D19xD8xT6mm
- ESC Compatibility: EZRUN MAX6 G2, EZRUN MAX5 HV G2 (8mm motor connector), QuicRun WP 8BL150 G2 (6.5mm motor connector)
- Vehicles: 1/6 Short Course Truck, Truck & 1/5 light trucks
- Examples: Losi Super Baja Rey, ARRMA Kraton 8S, ARRMA Outcast 8S
- Max RPM: 55,000

—

This compact brushless motor for RC vehicles is the obvious choice for those seeking a lightweight RC motor with maximum power, efficiency, and durability. Whether you’re building new or upgrading, with a Hobbywing brushless motor you get a reliable and high-performance solution that takes your RC experience to new heights. Turn your RC car, boat, or drone into a winner with the Hobbywing EZRUN 5690SD – the ultimate upgrade for anyone who loves speed, precision, and quality.

—

Ready to take your RC experience to the next level? Order your Hobbywing EZRUN 5690SD 1250KV brushless motor from RC Kongen today and feel the difference!
