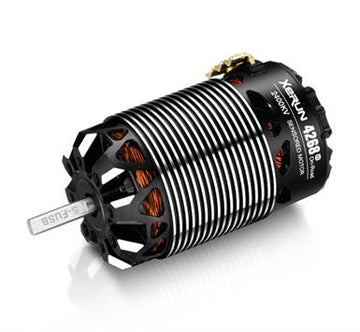

Xerun 1/8 4268SD G3 2400KV Brushless motor

Hobbywing XeRun 4268SD G3 2400kV is a no-compromise 1/8 on-road motor for those who want maximum power, brutal acceleration and silky-smooth throttle response – without sacrificing temperature or durability. It is developed for serious 1/8 GT and pan car racing and is optimized for the Hobbywing XeRun XR8 series of ESCs, where you get full utilization of “Pure Sensored” operation and Turbo Timing technology.

—

Pure Sensored operation – full control all the way through the throttle
This XeRun 4268SD G3 2400kV uses Hobbywing’s advanced “pure signal sensor mode” circuitry. When paired with a Hobbywing XeRun XR8 series ESC (e.g. XR8 Pro, XR8 Plus, etc.), the motor runs in pure sensored mode at all times.

This gives you:

• Extremely smooth and precise throttle response
• No cogging at low RPM
• Better control out of corners and in technical sections
• More predictable and stable handling – perfect for competitive use

The built-in intelligent IC allows the ESC to quickly and safely recognize the sensor unit, making setup and pairing hassle-free.

—

1/8 power system + Turbo Timing = massive top speed and punch
Together with Hobbywing XeRun XR8 series ESCs, this G3 motor can utilize Turbo Timing technology, which is known from the XR10 Pro series for 1/10 racing.

Benefits of Turbo Timing with the XR8 series:

• The motor delivers maximum power instantly
• Up to approx. 50% higher top speed compared to previous G2 series motors (with correct setup)
• Gives you a clear advantage on the straights and when accelerating out of corners

Note:

• When used with the XR8 Pro G2 ESC, the turbo angle can be set up to 48°.

—

Adjustable mechanical timing: fine-tune power to your track
The mechanical turbo timing on the XeRun 4268SD G3 can be precisely adjusted in both directions (CW/CCW) between 20–40°.

This means you can:

• Turn up power and RPM for large, fast tracks
• Turn down temperature and consumption for smaller, technical tracks
• Match the motor’s characteristics to your driving style and grip level

—

Improved efficiency – lower temperatures, more stable performance
Compared to the XERUN 4268/4274 G2, the G3 structure is optimized so efficiency is improved by 6% or more.

This provides:

• Lower motor temperatures under heavy load
• Reduced risk of thermal runaway
• More consistent performance throughout the entire heat or final

—

New Hall sensor technology – stable and fail-safe
The G3 series uses Hobbywing’s patented “error-free” Hall sensor technology with an independent, high-speed and high-precision encoder.

Advantages:

• Very clean and precise rotor position signal
• Effective isolation from electrical noise and external interference
• Stable sensored operation even under harsh conditions
• Maximum performance without dropouts in the sensor signal

—

Lightweight and strong 7075 aluminum construction
The motor housing is milled from a single piece of 7075 aluminum with precision CNC machining, providing high strength, good heat dissipation and low weight.

Design details:

• CNC stator housing without joints or visible screws on the outside
• Silicone dust ring around the sensor base for extra protection
• Front end bell with both M3 and M4 threaded holes – fits many different motor mounts
• U-shaped, 90° gold-plated copper terminals with low internal resistance – makes soldering easy and secure
• R-class insulation material (up to 240°C)
• Special adhesive with temperature tolerance up to 340°C
• Quality bearings from internationally recognized manufacturers, designed for high loads

—

Lightweight design – better weight distribution in the car
The 4268SD G3 series is optimized for low weight, making it easier to balance your 1/8 on-road car.
The low weight reduces unsprung mass and can improve both steering and traction.

(This 2400kV version weighs 276 g, see specifications below.)

—

Extremely smooth at low RPM
The motor is designed to minimize “low rpm no current torque” (cogging and small torque pulses).
The result is:

• Very smooth running at low speed
• Better control in the pit, slow sections and when precisely positioning the car
• More linear and predictable throttle response

—

Perfect for 1/8 GT and pan car on-road
The 4268 On-Road series is available in three KV variants: 2000KV, 2400KV and 2800KV, optimized for 1/8 pan car and GT.
This 2400kV version is a strong all-round choice for 1/8 on-road, where you want a combination of brutal acceleration and high top speed on 2–4S LiPo.

—

Specifications – Hobbywing XeRun 4268SD G3 2400kV On-Road

• Application: 1/8 On-Road (GT, pan car, etc.)
• Motor type: Sensored brushless
• Poles: 4
• KV rating: 2400KV
• LiPo cells: 2–4S
• No-load current: 4.3 A
• Can diameter: 42 mm
• Can length: 67.8 mm
• Shaft diameter: 5 mm
• Shaft length: 18.5 mm
• Weight: 276 g
• Front bearing: 5 × 5 × 16 mm
• Rear bearing: 5 × 5 × 11 mm
• Timing (mechanical): 20–40° (adjustable)

—

In short
Hobbywing XeRun 4268SD G3 2400kV is for those who run 1/8 on-road at a high level and want a motor that combines:

• Pure sensored operation for maximum control
• Turbo Timing and high efficiency for raw power and lower temperatures
• Robust, lightweight and well-thought-out construction for serious racing

A perfect match for Hobbywing XeRun XR8 series ESCs in your 1/8 GT or pan car.
