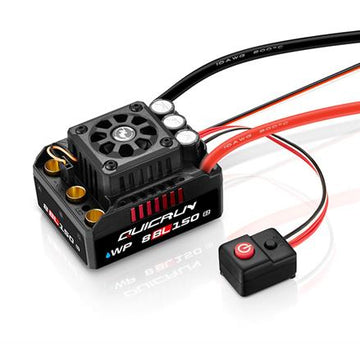

QuicRun WP 8BL150 G2 Sensorless ESC 3-6S Car 1/8

Hobbywing QuicRun WP 8BL150 G2 – powerful 1/8 brushless ESC with advanced cooling

Hobbywing QuicRun WP 8BL150 G2 is a robust, sensorless and waterproof brushless speed controller for 1/8 RC cars, trucks and monster trucks. With up to 150A continuous current, intelligent freewheeling technology and a powerful switch-mode BEC, it is designed for demanding bashing and track driving where reliability and low temperatures are crucial.

Features and benefits
The intelligent freewheeling technology provides higher efficiency and helps keep temperatures down compared to the previous generation. A patented copper heat conductor inside the ESC quickly transfers heat away from the power stage, and together with the built-in fan this creates a very stable and reliable cooling system.

The BEC has been significantly upgraded: from the previous 6V/3A to now 6V or 7.4V at 6A (switch-mode), with peaks up to 12A. This means the ESC can easily be used with powerful and high-voltage steering servos.

The ESC is dust- and splash-proof according to IP67, so you can drive in demanding environments with extra peace of mind. At the same time, an integrated overheat protection safeguards the large 2040µF capacitors from damage due to overload.

Driving modes and protection
QuicRun WP 8BL150 G2 gives you great flexibility in setup, so you can adapt the car for track, off-road and bashing:

• 9 different acceleration profiles from "soft" to very "aggressive"
• Proportional brake with adjustable max. braking force
• Automatic brake function

Built-in safety and protection features:

• Low-voltage protection for LiPo batteries
• Thermal overheat protection
• Protection in case of loss of throttle signal
• Overheat protection for capacitors

The independent programming port means you do not need to unplug the throttle lead from the receiver to program – this makes setup and adjustments quick and simple.

Specifications- Type: Brushless, sensorless

• Current (continuous / peak): 150A / 950A
• Battery type and cells: 3–6S LiPo
• BEC: 6V / 7.4V, 6A (switch-mode), peak up to 12A
• Waterproof: Yes, IP67 (dust- and splash-proof)
• Motor output: 6.5 mm gold connectors (female)
• Programming:

• LCD program box G2
• LED program card
• Programming interface via separate port
• Dimensions: 60 x 48 x 40.4 mm
• Weight: 169.5 g
• Application: 1/8 truck and monster truck

Compatibility and use
Suitable for 1/8 RC trucks and monster trucks where a powerful, waterproof and reliable brushless ESC for 3–6S LiPo is required. Particularly well-suited for models with powerful or high-voltage steering servos thanks to the strong, programmable BEC.

Included- QuicRun WP 8BL150 G2 ESC

• User manual (English)

In conclusion, with the Hobbywing QuicRun WP 8BL150 G2 you get a strong and modern 1/8 ESC that combines high performance, efficient cooling and flexible programming for serious RC driving.
