Category: Brushless Fartregulator
Scale: 1/6
Length: 70
Width: 56
Height: 46,5
Weight: 240
Plug: Lod selv
Volt: 11,1V - 14,8V - 22,2V
Surface:
Type: Brushless Fartregulator
Waterproof: Ja
Description

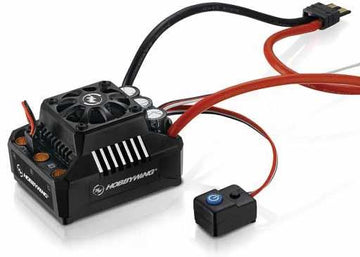

HobbyWing EZRun Max6 V3 - 160A ESC for Extreme Conditions
Take full control of your RC vehicle with the HobbyWing EZRun Max6 V3 ESC. Built for high reliability and durability, this ESC is a powerful choice for off-road and high-speed racing, designed for 1/6 and 1/7 scale vehicles.
Extreme Reliability and Robust Construction
This ESC is crafted with rugged components and advanced firmware, giving it exceptional durability under demanding conditions. The EZRun Max6 self-protects against damage caused by overloading or rough usage, ensuring reliable performance every time.
Weatherproof Design for All Conditions
The EZRun Max6 is IP-rated waterproof and dustproof, allowing you to drive in any type of weather without concern for water or dust damage, making it ideal for both terrain and high-speed racing.
Built-in High-Voltage BEC
The ESC includes a powerful BEC capable of delivering up to 25A with an adjustable output voltage between 6V and 7.4V. This provides steady power for high-voltage servos required in larger vehicles.
Advanced Anti-Spark System and Electronic Switch
The EZRun Max6 features an electronic switch with over 50,000 on/off cycles and is designed to withstand water, dust, and shocks. Its built-in anti-spark system prevents damage to battery connectors and reduces the risk of injury when connecting high-voltage batteries.
Regular Firmware Updates and Easy Programming
HobbyWing offers ongoing firmware updates easily downloaded via the USB LINK software. These updates allow you to optimize your ESC and keep your hardware at the highest level.
Specifications:
Specifications:
- Scale: 1/6 and 1/7
- Type: Brushless (BL)
- Sensor: Sensorless (SL)
- Waterproof: Yes (WP)
- Continuous/Peak Current: 160A / 1050A
- Input: 3-8S LiPo or 9-24 NiMH cells
- BEC Output: Switch Mode, 6V/7.4V, 6A
- Dimensions: 70.0x56.0x46.5 mm
- Weight: 240 g
Wiring and Connectors
- Input Wires: Red 10AWG, 200 mm; Black 10AWG, 200 mm
- Output Wires: Black 10AWG, 200 mm (x3)
- Output Connectors: 6.5 mm gold-plated connectors (pre-soldered on PCB)
