Winch Control Box for RC Crawler Cars

Upgrade your crawler car with RC Kongen’s own DTEW02001 control box for winches – the perfect solution for those seeking precise control and reliable electronics for their remote-controlled car. This control box is specifically developed for RC crawler enthusiasts who want the best equipment for their hobby RC cars.

—

Features and Benefits:
- RC Kongen’s proprietary control box for crawler cars
- Requires an extra channel on your remote for full functionality
- Robust control box with wires for easy and secure installation
- Integrated switch for quick winch activation
- Perfect for upgrading or replacing existing crawler car electronics
- Ensures stable RC car steering and precise control
- Suitable for both beginners and experienced RC enthusiasts

—

With this DTEW02001 control box, you get an electronic module designed to deliver reliable performance – even under demanding conditions. The control box functions as a central RC car control module, ensuring your winch responds quickly and accurately. It’s ideal for those looking to upgrade their crawler car or in need of high-quality remote-controlled car spare parts.

—

Easy Installation and Broad Compatibility
The control box comes with all necessary wires, so you can get started quickly. It fits most popular brands and models within crawler car electronics and is an obvious choice among crawler car parts and accessories. Remember, you need an extra channel on your remote to use this remote-controlled car control box optimally.

—

Upgrade Your Hobby RC Car
Want to take your crawler car to the next level? With this RC crawler control box, you get a reliable and efficient solution that ensures your car is always ready for new challenges. Whether you’re driving on technical tracks or in challenging terrain, this RC car control box with switch will significantly enhance your driving experience.

—

Why Choose RC Kongen’s DTEW02001 Control Box?
- Specially developed for crawler car electronics upgrades
- Gives you full control over winch and steering
- Quality component from RC Kongen – Denmark’s preferred RC shop
- Long lifespan and high operational reliability

—

Make your remote-controlled car even better with a control box for hobby RC cars from RC Kongen. Experience the difference with a dedicated RC car control unit built to last – and to give you the best driving experience every time.

—

Setup and Installation

Follow these steps to correctly connect your ESC:

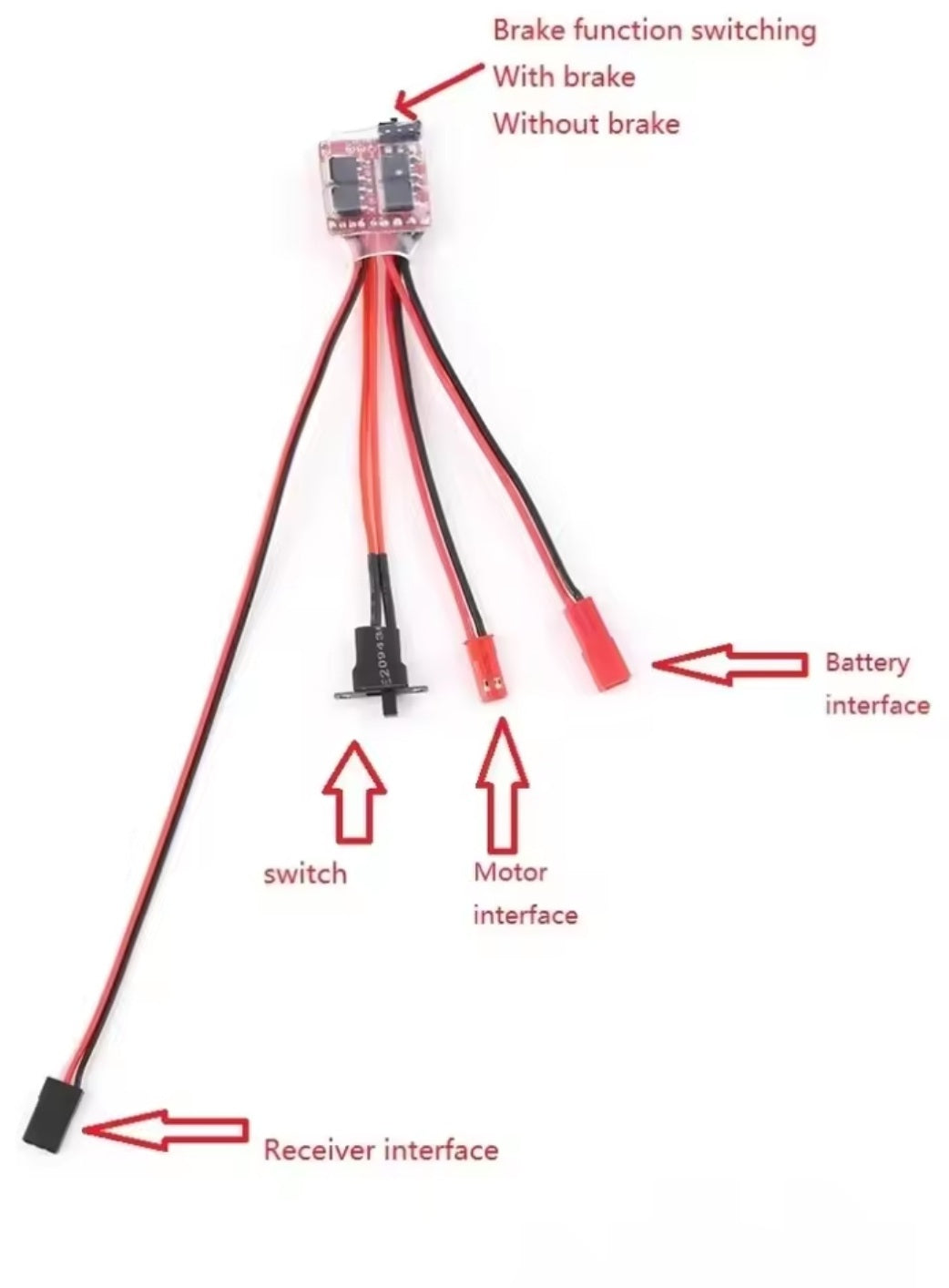

1.Identify Components: Familiarize yourself with the ESC's connectors. You will typically find:

• Power Input: Red and black wires with a red JST connector for the battery.
• Motor Output: Two wires (often red and black) for connecting to the brush motor.
• Signal Input: A 3-pin connector (usually black, red, white/orange) for connecting to the receiver's throttle channel.
• Power Switch: A small black switch to turn the ESC on/off.

2.Connect to Motor: Connect the two motor output wires from the ESC to your brush motor. Polarity usually doesn't matter for brush motors, but if the motor spins in the wrong direction, you can reverse these two wires.

3.Connect to Receiver: Plug the 3-pin signal input connector from the ESC into the throttle channel (usually Channel 2) of your RC receiver. Ensure the polarity is correct (signal, positive, negative).

4.Connect to Battery: Connect your battery (Li-Po 2S or Ni-Mh/Ni-Cd 4-7 cell) to the power input connector of the ESC. Ensure correct polarity (red to positive, black to negative).

 5.Initial Test: Before full operation, test the ESC with a low current to ensure proper operation. Turn on your RC transmitter, then turn on the ESC using its power switch. The motor should not spin until throttle input is given.

Operating Instructions

Once the ESC is correctly installed and connected, follow these steps for operation:

1.Power On: Ensure your RC transmitter is turned on first. Then, switch on the ESC using the integrated power switch

 2.Throttle Control: Use the throttle stick on your transmitter to control the motor speed. Moving the stick forward will typically engage forward motion, and pulling it back will engage reverse or brake, depending on the ESC's setting.

3.Function Selection: The ESC supports forward, reverse, and brake functions. The specific behavior (e.g., immediate reverse or brake before reverse) is pre-configured.

4.Voltage Range: Ensure your battery voltage remains within the specified working range of 3.0V to 9.4V during operation. Operating outside this range can damage the ESC or battery.

5.Power Off: Always turn off the ESC first, then turn off your RC transmitter. Disconnect the battery from the ESC when not in use.
