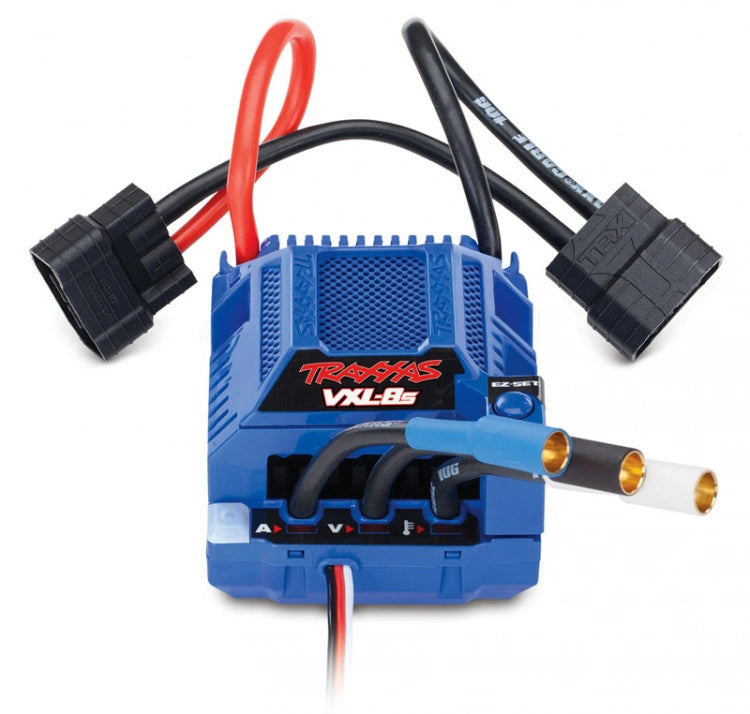

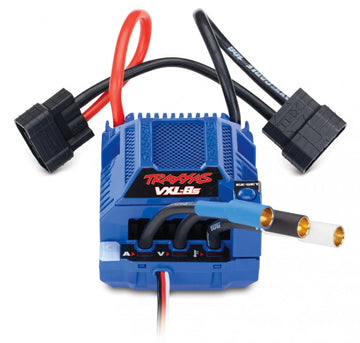

ESC Velineon VXL-8S Brushless WP

When only the best is good enough for your Traxxas X-Maxx® or XRT®, the VXL-8s ESC is the obvious choice. This powerful, waterproof electronic speed controller is developed from the ground up by Traxxas’ own engineers to deliver maximum performance and reliability—even under the most extreme conditions. The VXL-8s is designed to handle the immense power of the Big Block motor, ensuring you get the full benefit of your RC experience.

—

Key Features:
- Extreme power: Supports up to 8s LiPo (33.6V) for explosive acceleration and top speed.
- Waterproof design: Rubber seals and O-rings protect against water and moisture—drive in any weather.
- Advanced protection: Integrated temperature and voltage monitoring, Locked Rotor Protection™, and two-stage thermal shutdown.
- Real-time telemetry: Get live data on speed, voltage, temperature, and RPM directly on your mobile via the Traxxas Link App (requires 6511 Wireless Module, sold separately).
- Easy setup: EZ-Set® technology with one-touch operation and three driving profiles—Sport, Race, and Training Mode.
- Patented Traxxas High-Current Connectors: Ensure maximum power transfer without bottlenecks.
- Built-in cooling fan: Keeps temperatures down and extends run time.
- LED status lights: Provide clear feedback on the ESC’s status and warn of any issues.

—

Detailed Description:
The Traxxas VXL-8s ESC is made for enthusiasts who demand the very best from their RC car. With the ability to run up to 8s LiPo, you gain access to extreme power and speeds over 50+ mph—perfect for large, heavy models like the X-Maxx and XRT. The waterproof construction means you can take your car out in mud, snow, and rain without worries.

Safety is top-notch with advanced protection features: Two-stage low voltage detection protects your LiPo batteries, while Locked Rotor Protection™ and over-voltage protection prevent damage to the ESC and motor. The built-in fan and large heatsink ensure temperatures stay low, even under heavy loads.

With real-time telemetry (requires purchase of Traxxas 6511 Wireless Module), you can monitor all vital data directly on your smartphone via the Traxxas Link App—no extra sensors needed. This makes it easy to optimize your driving and keep track of your car’s condition.

EZ-Set® technology makes setup simple: Choose between Sport Mode (full performance), Race Mode (no reverse), or Training Mode (50% power for beginners). LED status lights keep you informed about the ESC’s status at all times.

—

Specifications:
- Input voltage: 4s/6s/8s LiPo (max 33.6V)
- Dimensions: 58 x 72 x 46 mm
- Weight: 215.5 g
- Motor connectors: Traxxas 6.5 mm gold plugs
- Resistance (fwd/rev): 0.00075 ohm
- BEC: 6.0V, 10A continuous, 20A peak
- Power cable: 10-gauge Maxx®
- Low voltage detection: 2-stage, can be enabled/disabled
- Thermal protection: 2-stage shutdown
- Setup: EZ-Set® with one button
- Battery connector: Traxxas High-Current Connector
- Compatible motor types: Brushless
- Connections: RX input, extra fan, Traxxas accessory port
- Profiles: Sport, Race, Training

—

Fits:
- Traxxas X-Maxx®
- Traxxas XRT®

—

Why choose the VXL-8s ESC from Traxxas?
If you want uncompromising power, maximum reliability, and user-friendly setup, the VXL-8s ESC is the obvious choice for your large Traxxas model. Whether you’re experienced or new to the hobby, you get advanced technology that both protects your investment and elevates your driving experience to new heights.

—

Ready to upgrade your X-Maxx or XRT?
Order your Traxxas VXL-8s ESC from RC Kongen today and experience the difference of true Maxx-duty performance!

—

Note: For real-time telemetry, the Traxxas 6511 Wireless Module (sold separately) and TQi transmitter are required.
