1/10 SCX10 III Coyote 4X4 RTR Brushed Rock Crawler

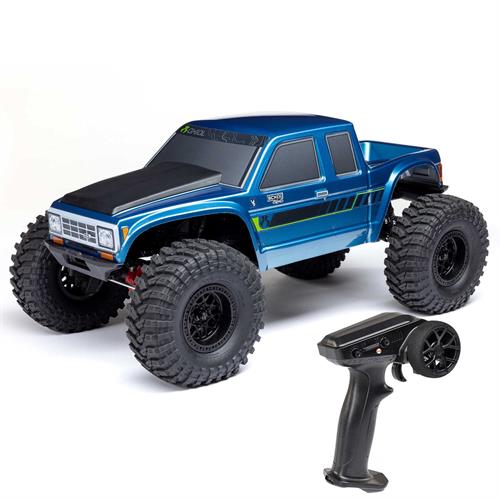

Axial SCX10 III Coyote 4X4 – Competitive crawler at a sharp price
The Axial SCX10 III Coyote is a 1/10 rock crawler that combines serious competition performance with a price that makes it easy to get started. It’s built on the proven SCX10 III platform, upgraded with portal axles, overdrive in the front axle, and a new suspension and battery layout for maximum control on technical sections. With the factory-painted Pro-Line Coyote body, licensed Maxxis tires, and KMC wheels, you get both a realistic scale look and serious off-road performance – straight out of the box.
The Coyote comes as a complete Ready-To-Run: just add your preferred LiPo or NiMH pack and charger, and you’re ready for trails, comps, and technical crawling.

Features and benefits

• Ready-To-Run – just add battery and charger
• SCX10 III steel C-channel chassis for strength and prescise suspension
• High-friction AR45P portal axles for extra ground clearance at the differentials
• Overdrive gears in the front axle for better climbing ability and sharper steering response
• New front-mounted battery position in front of the transmission for optimized weight distribution and balance
• Multi-link solid axle suspension with 6 mm stainless links and metal pivot balls
• New adjustable shock towers and oil-filled coil-over shocks for predictable, controlled driving
• Clipless Pro-Line Coyote body – quick access to the chassis without body clips
• Body designed for performance: pinched front, dovetailed and bobbed rear for better clearance and articulation
• Officially licensed Maxxis Trepador tires and KMC Grenade wheels with dual-stage foam for optimal grip and sidewall support
• Full ball bearings and all-metal internal gears in the transmission for maximum durability
• Spektrum SLT2 radio with throttle limiting (50% / 75%) – perfect for both beginners and experienced drivers
• Waterproof Spektrum 40A ESC and metal-geared Spektrum S664 servo for reliable steering in all conditions

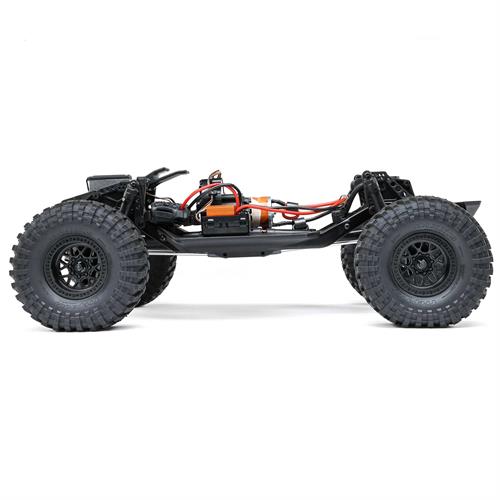

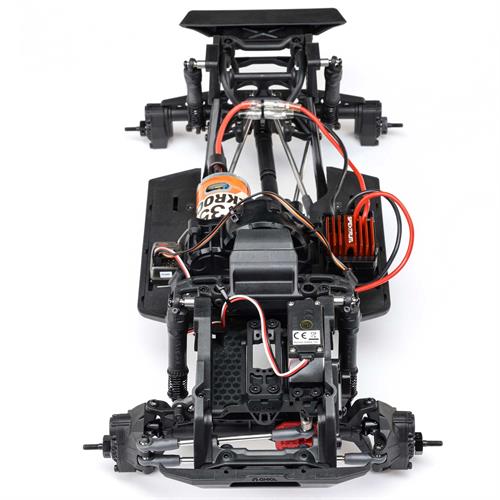

Chassis, transmission and axles

• SCX10 III one-piece steel C-channel chassis reduces flex and increases suspension precision
• LCXU 4WD transmission with:

- Full ball bearing set
- All-metal internal gears
- Compatible with both standard and portal axles

• AR45P portal axles:

- Increase ground clearance at the differentials
- Front axle with overdrive gears for better climbing and maneuverability

• Multi-link solid axle suspension with 6 mm stainless steel links and metal pivot balls for long-term off-road durability

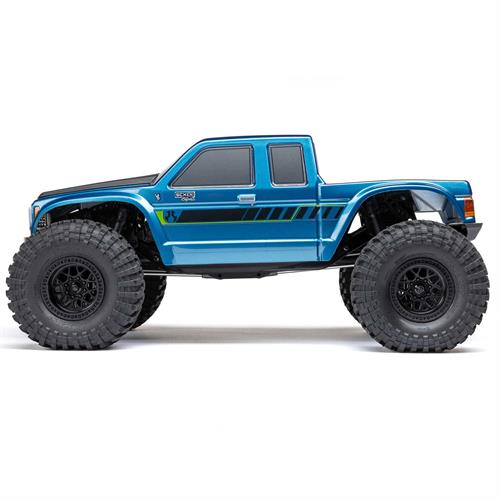

Body, wheels and tires

• Factory-painted Pro-Line Coyote polycarbonate body
• Clipless body mounting:

- No visible clips
- Hinged at the rear and can be removed completely for easy access to the chassis

• Body design optimized for crawling:

- Pinched front
- Dovetailed and bobbed rear
- Narrow width to slip through tight sections and provide good tire and suspension clearance

• Officially licensed Maxxis Trepador tires
• Officially licensed KMC Grenade wheels
• Dual-stage open cell foam inserts:

- Soft outer foam for grip
- Firm inner foam for sidewall support

Electronics and radio system

• Factory-installed brushed drivetrain:

- Axial 35T 540 brushed motor
- Spektrum 40A waterproof brushed ESC
- Spektrum S664 25T metal-geared, waterproof servo for strong and reliable steering

• Spektrum SLT2 2.4GHz 2-channel radio:

- Throttle limiting: limit top speed to 50% or 75% for safe learning
- 4 x AA batteries for the transmitter included

• Spektrum SR515 DSMR 5-channel receiver included

Specifications

• Assembly time: No assembly required (RTR)
• Bearings: Full ball bearing specification
• Battery: Sold separately
• Charger: Sold separately
• Completion level: Ready-To-Run
• Connector type: IC3
• Drive type: Forward/Brake/Reverse
• Drivetrain: 4WD
• LiPo compatibility: 2S, 3S
• Motor type: Brushed
• Pinion: 14T
• Power type: Electric
• Body height: 7.75" (197 mm)
• Length: 17.5" (445 mm)
• Width: 9.25" (235 mm)
• Weight (with 1300mAh battery): 5.25 lb (2.38 kg)
• Radio: Included
• Receiver: Included
• Scale: 1/10
• Servos: Included
• Shocks: Oil-filled shocks
• Spur gear: 25T
• Suspension: Multi-link solid axle suspension
• Tire type: Officially licensed Maxxis Trepador tires
• Vehicle size: Standard
• Vehicle type: Rock Crawler
• Wheel hex: 12 mm
• Wheelbase: 12.3" (312 mm)

Why the Axial SCX10 III Coyote is a strong choice
The SCX10 III Coyote combines a thoroughly tested platform with targeted upgrades such as portal axles, an overdrive front axle, optimized battery placement, and a clipless Pro-Line body. At the same time, you get a complete RTR setup with quality electronics from Spektrum, so you can go straight from the box to the trail – whether you’re new to the hobby or chasing your next podium finish.
