1/10 R/C Lancia Delta (TT-02) / NO ESC

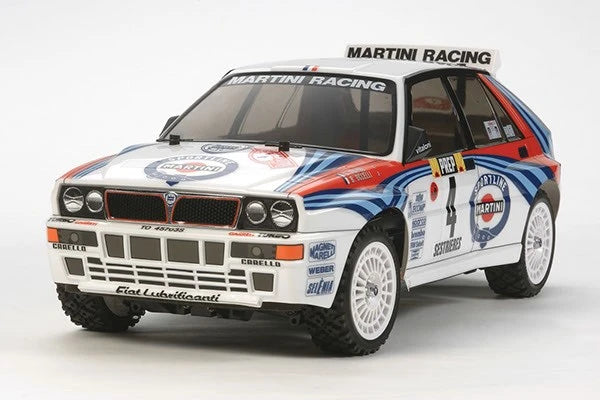

Tamiya 1/10 Lancia Delta Integrale (TT-02) – The 1992 rally legend for your RC collection
This 1/10 R/C assembly kit model of the Lancia Delta Integrale recreates the iconic 1992 World Rally Champion in authentic detail. The lightweight polycarbonate body captures the angular 4-door hatchback with wide fenders, hood bulge, and the characteristic front air intakes. The Martini Racing livery is reproduced with the included stickers, giving you the classic rally look straight out of the box.

Features and benefits

• Detailed polycarbonate body with front and rear fender flares
• Recreates the hood bulge and multiple air intakes in the front bumper
• Separate plastic parts for side mirrors and roof spoiler for extra realism
• Martini Racing decals with the famous stripes included
• Rally block tires provide good grip both on-road and on flat gravel
• TT-02 chassis with balanced, shaft-driven 4WD for stable and predictable handling

TT-02 chassis – versatile and user-friendly
The TT-02 chassis is built with a longitudinal layout, with the battery on the left side and the motor on the right for optimal stability. Identical left/right suspension arms and uprights make assembly and maintenance simple, and the gearboxes are easy to access.
The chassis is highly flexible in setup and can be adapted to different tracks and driving styles:

• 2 different wheelbases
• 2 ground clearances (Lancia Delta Integrale uses the high setting)
• 2 track width setups
• 10 possible gear ratios via different pinion gears

In addition, you get a great scale look with wheel hubs shaped like brake discs and stylish front bumper supports.

Specifications

• Length: 407 mm
• Width: 186 mm
• Height: 159 mm
• Wheelbase: 257 mm
• Tire width/diameter (front and rear): 27 / 69 mm
• Chassis: Bathtub frame
• Drivetrain: Shaft-driven 4WD
• Differentials: Front/rear 4-bevel gear units in resin
• Steering: 3-piece steering tie-rod
• Suspension: 4-wheel double wishbone
• Dampers: Friction dampers front and rear
• Standard gear ratio: 9.58:1
• Optional gear ratios: 9 additional from 11.38:1 to 7.28:1 (with separately sold pinion gears)
• Motor: Type 540
• ESC: Tamiya/Hobbywing ESC included

Technical details and maintenance

• Gearbox cover can be removed by simply loosening screws in the frame
• Molded 4-bevel differential gears provide smooth operation and stable turn-in
• Resin ball connectors in the steering linkage ensure smooth and precise steering
• Wheel hubs designed as brake discs for a realistic appearance
• 4-wheel double wishbone suspension with friction dampers for controllable handling
• Motor cover with removable cooling duct

Required equipment (not included)

• 2-channel R/C system with 1 servo
• Batteries for transmitter
• 7.2 V battery pack and charger
• Tamiya spray paint for polycarbonate (PS series)

This Tamiya Lancia Delta Integrale on the TT-02 chassis combines classic rally history with reliable 4WD technology – perfect for both collectors and drivers who want an iconic WRC car on the track.
